TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6

Name: TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 21 13Ohm SOT236
Brand: original
Price: 1 USD

Brand Name : original

Model Number : TS5A3159QDBVRQ1

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Multiplexer/Demultiplexer Circuit : 2:01

Number of Circuits : 1

On-State Resistance (Max) : 1.3Ohm

Channel-to-Channel Matching (ΔRon) : 100mOhm

Voltage - Supply, Single (V+) : 1.65V ~ 5.5V

Switch Time (Ton, Toff) (Max) : 35ns, 20ns

-3db Bandwidth : 100MHz

Charge Injection : 36pC

Contact Now

TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6

Specifications of TS5A3159QDBVRQ1

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Interface
	Analog Switches, Multiplexers, Demultiplexers
Mfr	Texas Instruments
Series	Automotive, AEC-Q100
Package	Tape & Reel (TR)
	Cut Tape (CT)
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:01
Number of Circuits	1
On-State Resistance (Max)	1.3Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	35ns, 20ns
-3db Bandwidth	100MHz
Charge Injection	36pC
Channel Capacitance (CS(off), CD(off))	23pF
Current - Leakage (IS(off)) (Max)	6nA
Crosstalk	-65dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6
Base Product Number	TS5A3159

Features of TS5A3159QDBVRQ1

• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
– Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C4B
• Specified Break-Before-Make Switching
• Low ON-State Resistance (1 Ω)
• Control Inputs are 5-V Tolerant
• Low Charge Injection
• Excellent ON-Resistance Matching
• Low Total Harmonic Distortion
• 1.65-V to 5.5-V Single-Supply Operation

Applications of TS5A3159QDBVRQ1

• Automotive Infotainment and Cluster
• Body Electronics and Lighting

Environmental & Export Classifications of TS5A3159QDBVRQ1

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6

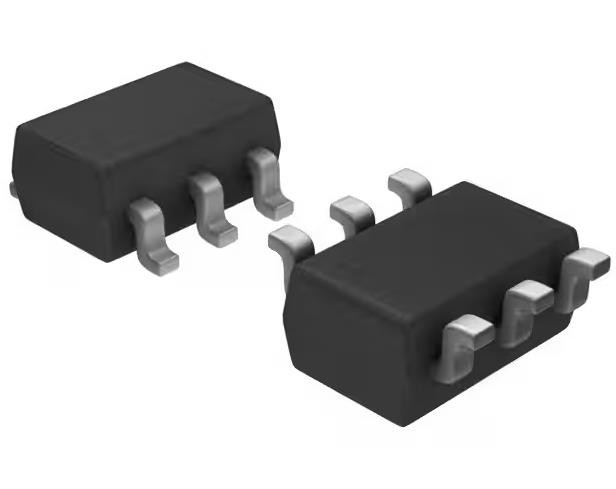

TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6 Images
