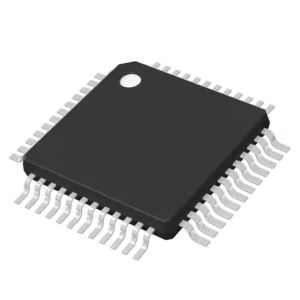

STM32F030C8T6 ARM Cortex-M0 Microcontroller Integrated Circuit 32-Bit Single-Core 48MHz

STM32F030C8T6 ARM Cortex-M0 Microcontroller IC 32-Bit Single-Core 48MHz

Specifications of STM32F030C8T6

Features of STM32F030C8T6

• Core: Arm® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz
• Memories
– 16 to 256 Kbytes of Flash memory
– 4 to 32 Kbytes of SRAM with HW parity
• CRC calculation unit
• Reset and power management
– Digital & I/Os supply: VDD = 2.4 V to 3.6 V
– Analog supply: VDDA = VDD to 3.6 V
– Power-on/Power down reset (POR/PDR)
– Low power modes: Sleep, Stop, Standby
• Clock management
– 4 to 32 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 8 MHz RC with x6 PLL option
– Internal 40 kHz RC oscillator

Introduction of STM32F030C8T6

The STM32F030x4/x6/x8/xC microcontrollers incorporate the high-performance Arm® Cortex®-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs and up to six USARTs), one 1 -bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer

Environmental & Export Classifications of STM32F030C8T6

STM32F030C8T6 Microcontroller Integrated Circuit

48MHz Microcontroller Integrated Circuit

STM32F030C8T6 ARM Cortex-M0 Microcontroller Integrated Circuit 32-Bit Single-Core 48MHz Images
